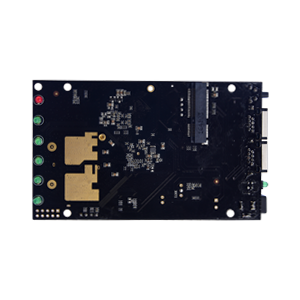

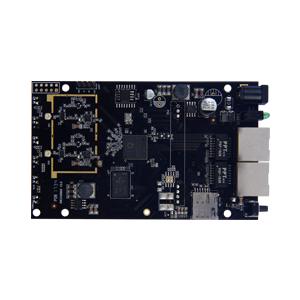

Features
●  Qualcomm QCA9531(550 MHz) Network Processor
●  1 Mini PCIe slot
●  2 Ethenet ports
●  Integrated passive Power-over-Ethernet

●  Integrated with PoE cascade arrangement






TECHNICAL SPECIFICATIONS

HARDWARE INFORMATION

Processor主芯片

Qualcomm QCA9531550 MHz Network Processor

System Memory内存

128MBmax 128MB optionalDDR SDRAM

NOR Flash Flash

16MBmax 16MB optional

Power Amplifier功放

SKY SE2576(双流300Mbps

Antenna天线接口

U.FL

PCIe Slot

1 x 9.2 mm Mini PCIe slotUSB

Ethernet端口

2 X 10/100 Base-T Ethernet Portwith Auto MDI / MDIX

Flat Cable排线

1 x10pin hole(孔)

Serial Port

1 x 4pin headerTTL

Reset

Push Button Reset按钮复位

Remote hardware resetOptional)远程硬件复位(可选)

Watch Dog Timer

Yes

PoE

Passive PoE range 9V-28V DC),可外接PD模块,转48V供电

DC Jack Input (optional)

Range 9V-28V DC

Power Consumption

6W (Host Board only)

RoHS Compliance

YesOptional(可选)

Humidity

Operating: 5% to 95%non-condensingStorage: Max.90% non-condensing

Temperature Range

Operating: -20ºC to 70ºC   Storage: -35ºC to 90ºC

Dimensions

115 x 70 x 16mm

Weight

100g



RF MODULE

频率范围

2.4~2.4835GHz

RF功率输出

500mW

接收灵敏度

802.11n_HT40

802.11n_HT20

802.11n_11g

802.11n_11b

-88dBm @MCS0

-90dBm @MCS0

-94dBm @6Mbps

-96dBm @1Mbps

-66dBm @MCS7

-67dBm @MCS7

-76dBm @54Mbps

-85dBm @11Mbps

发射功率

802.11n_HT40

802.11n_HT20

802.11n_11g

802.11n_11b

28dBm @MCS0

28dBm @MCS0

28dBm @6Mbps

28dBm @1Mbps

25dBm @MCS7

25dBm @MCS7

25dBm @54Mbps

28dBm @11Mbps



APPLICATION

RF MODULE

802.11 WLAN

Qualcomm QCA9887n/ac 433Mbps200mW



SOFTWARE INFORMATION

Firmware Support

RedwaveOpenWRTDD-WRT

① The input power can come from an Ethernet port and it is fed to the other Ethernet port so that it can in turn drive another Passive PoE device.

② Serial Converter available to change the TTL signals on board to RS232 signals for debugging Configurations are subject to change without notice.

③ Please contact Redwave sales representatives for other available configurations.
