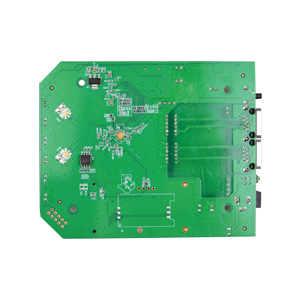

Features
●  MediaTek MIPS 24K 580MHz Network Processor
●  2.4GHz 300Mbps(100mW 2T2R)
●  1 Mini PCIe slot
●  2 Ethenet ports(2 x 10/100 Base-T Ethernet Port )
●  1 TF(Micro SD)slot
●  Integrated passive Power-over-Ethernet

●  Integrated with PoE cascade arrangement



TECHNICAL SPECIFICATIONS



HARDWARE INFORMATION

Processor处理器

MediaTek MT7620A580 MHz Network Processor

System Memory系统内存

64MBmax 256MB optionalDDR SDRAM

NOR Flash闪存

8MBmax 64MB optional

RF1射频1

2.4GHz 300Mbps100mW 2T2R

Sensitivity灵敏度

300M-70dBm@10% PER270M-70dBm@10% PER

195M -71dBm@10% PER; 130M-74dBm@10% PER

54M-79dBm@10% PER; 6M-94dBm@10% PER

Data transfer rate

数据传输速率

11n: 300/270/243/216/162/108/81/54/27Mbps

         135/121.5/108/81/54/40.5/27/13.5Mbps

         130/117/104/78/52/39/26/13Mbps

         65/58.5/52/39/26/19.5/13/6.5Mbps

11g: 54/48/36/24/18/12/9/6Madaptive);

11b: 11/5.5/2/1Madaptive

RF2射频2

802.11 WLAN Mini PCIe2.4GHz5.8GHz3G4G

PCIe Slot/PCIe插槽

1 x 9.2 mm Mini PCIe slot

Ethernet以太网

1 x 10/100 Base-T Ethernet Portwith Auto MDI / MDIX

1 x 10/100/1000 Base-T Ethernet Portwith Auto MDI / MDIX

TFMicro SDSlot/ TF插槽

1 x TFMicro SDSlot

USB

1 x USB 2.0 D+ D Connector(焊盘)

SIM

1 x SIM

Serial Port 串口

1 x 4pin headerTTL

Reset 复位键

Push Button Reset按键复位

Remote hardware resetOptional)远程硬件复位(可选)

LED指示灯

PowerSystemWireless Link/ActLAN Link/Act

Watch Dog Timer 看门狗

Yes

PoE 网线供电

Passive PoE range 9V-24V DC

DC Jack  Input (optional)直流电输入(可选)

Range 9V-24V DC

Power Consumption功耗

8W Host Board only

RoHS Compliance 符合RoHS标准

Yes

Humidity 湿度

Operating: 5% to 95%non-condensingStorage: Max.90% non-condensing

Temperature Range 温度

Operating: -20ºC to 70ºC   Storage: -40ºC to 90ºC

Dimensions 尺寸

115 x 94.1 x 16mm

Weight 重量

110g





SOFTWARE INFORMATION

Firmware Support固件

RedwaveOpenWRTDD-WRT



The input power can come from an Ethernet port and it is fed to the other Ethernet port so that it can in turn drive another Passive PoE device.

Serial Converter available to change the TTL signals on board to RS232 signals for debugging Configurations are subject to change without notice.

Please contact Redwave sales representatives for other available configurations.
